(PT. 7012) 180Kg Cup Foot Mount
Click on thumbnail(s) to enlarge

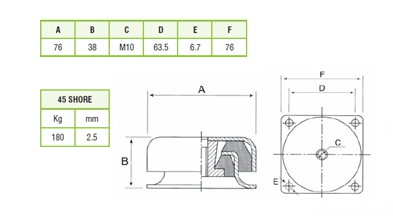

(PT. 7012) 180Kg Cup Foot Mount

Item Code: CSM2000/45 Price: £29.99 + VAT

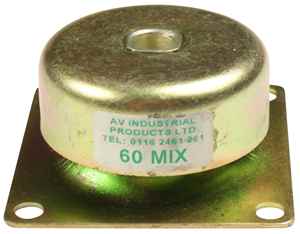

Cup shock mountings are a relatively stiff product, ideal for applications where high frequency vibrations are predominant. The product is failsafe and ideal for both mobile & static applications. The outer metal cap offers protection from contaminants such as Oil and Fuel. The design of the mounting also allows the product to be used in tension, although maximum loads should be derated.

Applications include:- Military Equipment, Electronic Equipment, HVAC, Compressors, and Motors
