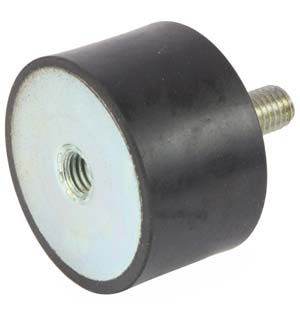

(PT.11016) 30 x 25 Male Female Bobbin M8 x 20 Max Load 17.5Kg
Click on thumbnail(s) to enlarge

(PT.11016) 30 x 25 Male Female Bobbin M8 x 20 Max Load 17.5Kg

Item Code: 3025MF20-45 M8 Price: £3.49 + VAT

***Click here toVisit our New Online Shop for more sizes***


Bobbin Mounts are a low cost solution to reducing vibration & shock. They can be used in either Compression or Shear.

Applications include: General Purpose mountings, popular in a wide range of applications & industries including Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment.


  • 30mm Diameter x 25mm Height
  • Male Female bobbin
  • M8x 20mm stud length
  • 45 Shore rubber hardness
  • Max Compression Load 17.5Kg Load
  • Deflection at Max Load 2.1mm


  •
