(PT. 7011) 80Kg Cup Shock Mount
Click on thumbnail(s) to enlarge

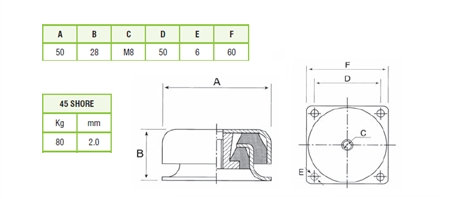

(PT. 7011) 80Kg Cup Shock Mount

Item Code: CSM1000/45 Price: £24.98 + VAT

Cup shock mountings are a relatively stiff product, ideal for applications where high frequency vibrations are predominant. The product is failsafe and ideal for both mobile & static applications. The outer metal cap offers protection from contaminants such as Oil and Fuel. The design of the mounting also allows the product to be used in tension, although maximum loads should be derated.

Applications include:- Military Equipment, Electronic Equipment, HVAC, Compressors, and Motors
