(PT. 5030) Large Flange Mount 60Kg (M10)
Click on thumbnail(s) to enlarge

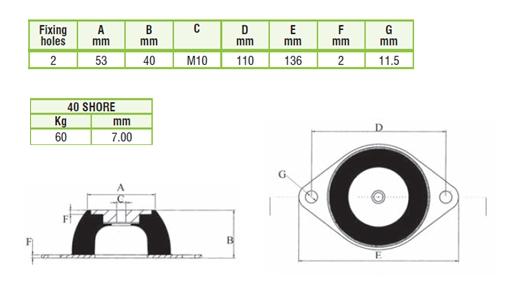

(PT. 5030) Large Flange Mount 60Kg (M10)

Item Code: FM100/40 Price: £23.79 + VAT

***Click here to Visit our New Online Shop for more sizes***


Flanged Mountings give high levels of deflection, providing excellent levels of vibration reduction and shock absorption both in vertical & horizontal planes. Low costs & easy to install. Stainless Steel metals and Oil Resistant / High Temperature rubbers available on request.

Applications include:- Pumps, Fans, Compressors, Vibratory Screens, and Processing Equipment etc.


  • Flanged Rubber Mount
  • High Quality Natural Rubber
  • Ideal for static applications
  • 40 Shore rubber hardness
  • Maximum Load 60Kg
  • 7mm Deflection


  •
