(PT. 3013) 64D x 34HT - Max Load 130Kg (M12)
Click on thumbnail(s) to enlarge

(PT. 3013) 64D x 34HT - Max Load 130Kg (M12)

Item Code: CTMR0 Price: £20.49 + VAT

***Click here to Visit our New Online Shop for more sizes***


Captive Transit Mounts are designed with an integral overload stop which controls the movement of equipment during transit and provides a fully failsafe arrangement, suitable for both Mobile & Static Applications.

A universal mounting, popular in a wide range of applications. Cost Effective, High Performing & Easy to Install. The rubber is used in shear compression providing optimum performance and offers vibration reduction of upto 95%. The metal top cap provides protection from contaminants such as Oil & Fuel.

Applications include:- Diesel Engine, Generator Sets, Pumps, Compressors, Vehicles, and Marine Engines, Construction Plant.


  • FAILSAFE DESIGN
  • TOP CAP REDUCES CONTACT WITH FUEL & OIL
  • EASY TO INSTALL
  • MAX LOAD 130KG PER MOUNT

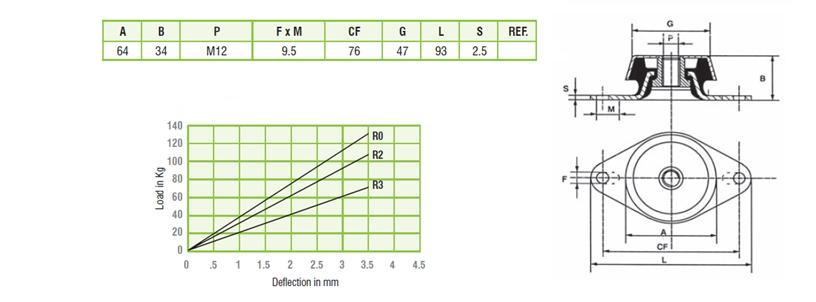

  • DEFLECTION AT MAX LOAD 3.5mm
  • HIGH DAMPED RUBBER
  • IDEAL FOR SINGLE & 3 CYLINDER ENGINES


  •
