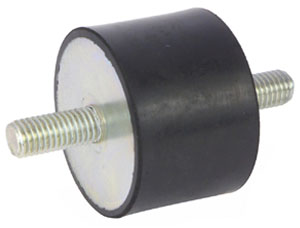

(PT.10009) 25 x 15 Male Male Bobbin M8 x 20 Max Load 23Kg

Item Code: 2515MM20-50 M8 Price: £1.99 + VAT

***Click here to Visit our New Online Shop for more sizes***

Bobbin Mounts are a low cost solution to reducing vibration & shock. They can be used in either Compression or Shear.

Applications include: General Purpose mountings, popular in a wide range of applications & industries including Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment.

25mm Diameter x 15mm Height Male Male bobbin M8x 20mm stud length 50 Shore rubber hardness Max Compression Load 23Kg Deflection at Max Load 1.2mm
