(PT. 3104) Medium 4 Hole Fixing, M16, Max Load 240Kg
Click on thumbnail(s) to enlarge

(PT. 3104) Medium 4 Hole Fixing, M16, Max Load 240Kg

Item Code: CM566/50 Price: £23.87 + VAT

***Click here toVisit our New Online Shop for more sizes***


Cab & Cone Mountings are a robust product offering a high horizontal stiffness compared to its vertical stiffness in order to control the movement of Engines & Equipment. They are ideal for mobile applications, and are able to accommodate high loads & shock forces whilst offering excellent vibration isolation properties. The mountings can be supplied with Bump & Rebound washers to provide a failsafe mounting solution. The design of the mountings ensures a low profile installation.

Applications Include: Off Road Vehicle Engines, Cabs, Rail Applications, and Mobile Applications, Transmission & Gear Box Suspension.

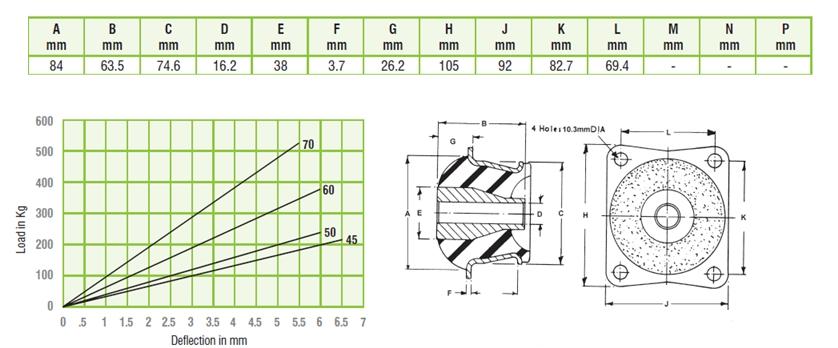

  • 50 Shore rubber hardness
  • Max Load 240Kg
  • 6mm Deflection
  • Top and Bottom washers available at additional cost. Please Enquire


  •
