(PT. 3101) Small 2 Hole Fixing, M12, Max Load 100Kg
Click on thumbnail(s) to enlarge

(PT. 3101) Small 2 Hole Fixing, M12, Max Load 100Kg

Item Code: CM605112A/45 Price: £19.98 + VAT

***Click here to Visit our New Online Shop for more sizes***

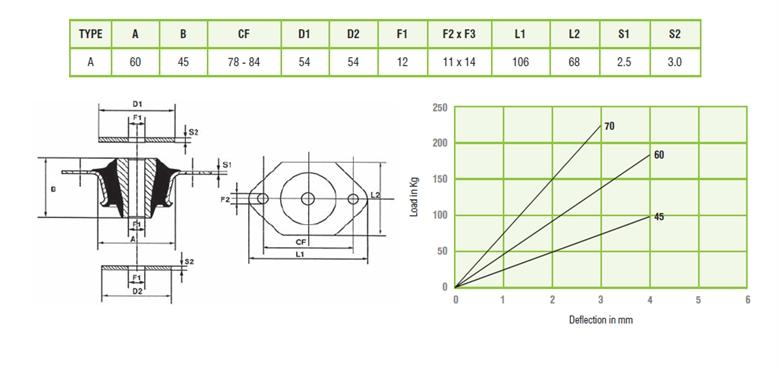

Cab & Cone Mountings are a robust product offering a high horizontal stiffness compared to its vertical stiffness in order to control the movement of Engines & Equipment. They are ideal for mobile applications, and are able to accommodate high loads & shock forces whilst offering excellent vibration isolation properties. The mountings can be supplied with Bump & Rebound washers to provide a failsafe mounting solution. The design of the mountings ensures a low profile installation.

Applications Include: Off Road Vehicle Engines, Cabs, Rail Applications, and Mobile Applications, Transmission & Gear Box Suspension.

  • 45 Shore rubber hardness
  • Max Load 100Kg
  • 4mm Deflection
  • Top and Bottom washers can be supplied at additional cost. Please Enquire
