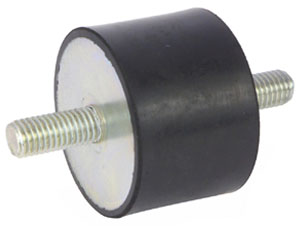

(PT.10033) 70 x 45 Male Male Bobbin M10 x 25 Max Load 132 Kg
Click on thumbnail(s) to enlarge

(PT.10033) 70 x 45 Male Male Bobbin M10 x 25 Max Load 132 Kg

Item Code: 7045MM25-60 Price: £8.39 + VAT

***Click here toVisit our New Online Shop for more sizes***


Bobbin Mounts are a low cost solution to reducing vibration & shock. They can be used in either Compression or Shear.

Applications include: General Purpose mountings, popular in a wide range of applications & industries including Diesel Engines, Generator Sets, Instruments, Industrial Machinery & Equipment.


  • 70mm Diameter x 45mm Height
  • Male Male bobbin
  • M10 x 25mm stud length
  • 60 Shore rubber hardness
  • Max Compression Load 132Kg
  • Deflection at Max Load 3.9mm


  •
